When building fiber optic networks in industrial areas, the work does not end once the trench has been completed. Cables must follow the planned routes, remain protected during installation, and be accessible for maintenance when needed. This makes choosing the right Sub-Duct pipe an important decision for network contractors. For projects in Karawang and Cikarang, finding a Telkom pipe manufacturer that can provide specifications suited to project requirements is an essential part of the preparation process.
Why Should Fiber Optic Cable Protection Be Planned from the Start?
Imagine a network project connecting several buildings within an industrial estate. The route passes through production areas, operational roads, and several intersections. Once the cables have been installed, a problem in any section of the route could require the team to carry out inspections and repairs that are far from straightforward.

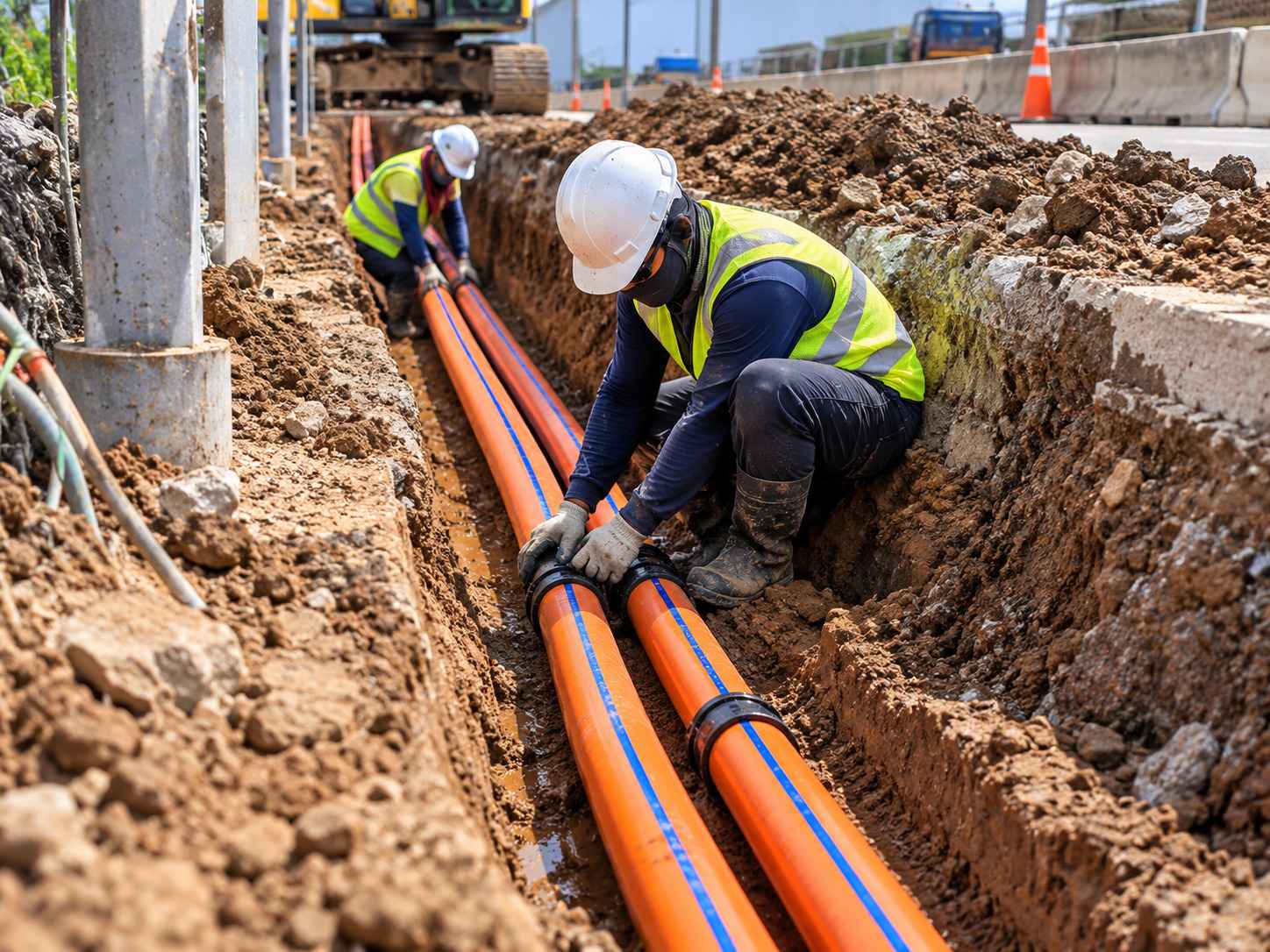

This is where Sub-Duct pipes come in. These pipes serve as protective conduits for underground fiber optic cables. Their material and dimensions must be selected according to the network design, installation conditions, and project-specific technical requirements.
These considerations are particularly relevant to industrial estates such as Jababeka, MM2100, and Delta Silicon in Cikarang, as well as KIIC and Suryacipta in Karawang. Construction and operational activities in these industrial areas require careful utility route planning. Installation depth, soil conditions, potential surface loads, and cable-pulling methods must all be considered in accordance with the technical design.
Selecting the right pipes during the planning stage helps teams avoid specification mismatches once work is underway. Price is certainly an important consideration, but it should not be the sole basis for making a decision.
Getting to Know ALVApipe Telkom Sub-Duct Pipes
For underground telecommunications networks, ALVApipe offers HDPE Sub-Duct pipes designed to protect fiber optic cables. These products are made from virgin PE-100 polyethylene, featuring an orange color with blue stripes for visual identification.
The available sizes listed in the product specifications include:
- 32/27 mm
- 32/28 mm
- 40/33 mm
- 50/42 mm
These figures indicate the pipe’s outside diameter and inside diameter, respectively. The distinction is important because the internal space determines whether the pipe is suitable for the cables being pulled through it. Pipe sizes should not be selected solely based on what was used in previous projects. Teams need to check cable diameters, the number of cables, the network route design, and the requirements specified by the network owner.
Product information and specifications are available on the ALVApipe HDPE Telecommunications Pipes page.
Technical Standards and Quality Testing
Technical specifications should be part of the inspection process before procurement. ALVApipe product information lists a Quality Assurance Test by PT Telkom Indonesia, referencing STEL L-039-2008 Version 2.2. For specific projects, procurement teams should still confirm that the required documentation meets tender requirements and the applicable conditions set by the network owner.
Another important point is the distinction between company certifications and product-related documentation. ISO 9001:2015 concerns a company’s quality management system rather than the certification of an individual pipe product. Understanding this distinction helps ensure a more accurate evaluation process and prevents documents from being misinterpreted.
Why Are Flexibility and the Inner Surface Important?
Fiber optic cable routes do not always follow straight lines. Routes may run along road boundaries, pass through intersections, or adapt to the available space between other utilities. HDPE flexibility can help accommodate route layouts, provided that bending limits, installation design, and installation guidelines are followed.
The pipe’s inner surface also deserves attention because it affects the cable-pulling process. On long routes, bends, inside diameter, and pulling methods can influence how smoothly installation proceeds. For this reason, pipe sizes should be selected according to the network design rather than simply choosing the pipe with the largest diameter.
Don’t Compare Sub-Duct Pipe Prices per Roll Alone
When looking for a fiber optic pipe supplier in Karawang or Cikarang, procurement teams typically need to compare several quotations. To make a fair comparison, ensure that the products being evaluated have equivalent specifications.
Check the material, dimensions, roll length, test documentation, required quantity, and delivery terms. The price per roll alone may not accurately reflect the project’s total requirements if the roll lengths, dimensions, or specifications differ.
Installation conditions are another factor worth considering. Pipes used along routes exposed to potential surface loads must comply with the appropriate installation design and technical requirements. Avoid relying on general durability claims without checking the relevant technical data or requirements.
If you are preparing a project budget, the article on HDPE pipe specifications and pricing for telecommunications network projects can serve as an additional reference for understanding what to check before requesting a quotation.
Procuring Telkom Pipes for Projects in Karawang and Cikarang
ALVApipe is a brand of PT Alpha Cikupa Makmur, with manufacturing facilities in the Jatake Industrial Estate, Tangerang. From this location, pipe requirements for projects in Bekasi, Cikarang, and Karawang can be discussed with the ALVApipe team. Product availability, logistics costs, and delivery schedules should still be confirmed based on the delivery location and order quantity.
To make the quotation process more efficient, prepare the project’s basic information before contacting a supplier. This includes the required pipe dimensions, quantity or total length, delivery location, target arrival date, and any required technical documentation. Having this information ready helps the team assess your requirements more efficiently.
To learn more about the company and its product range, visit the official ALVApipe website. You can also follow updates on Instagram through the ALVApipe account. If you want to check products available for retail purchases, visit the ALVApipe Shopee store.
Ensure Specifications Match Your Requirements Before Work Begins
Sub-Duct pipes are one component of a fiber optic network system that requires careful planning. Appropriate dimensions, clear technical documentation, and accurate material estimates help teams prepare for installation more effectively.
For network contractors, telecommunications vendors, and procurement teams handling projects in Karawang and Cikarang, the next step is to match on-site requirements with the available product specifications.
Share your required pipe dimensions, quantities, project location, and delivery schedule with the ALVApipe team to obtain further information. Click Contact Us or contact us via WhatsApp at +6287726663295 to discuss your Sub-Duct pipe requirements.
